PLANET COMPUTERS

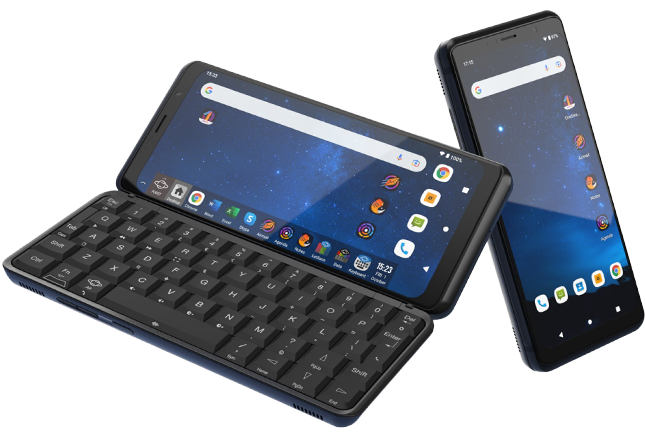

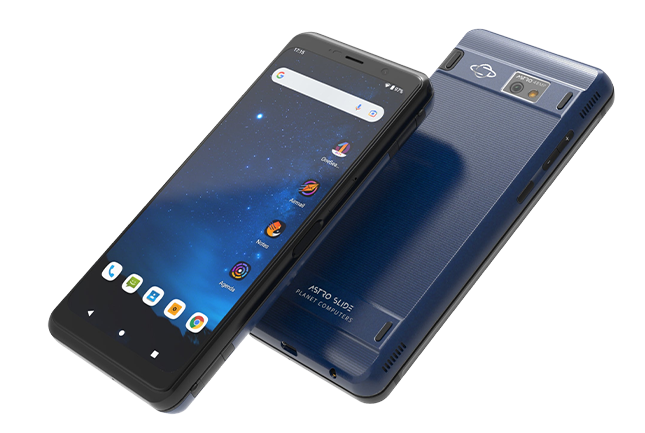

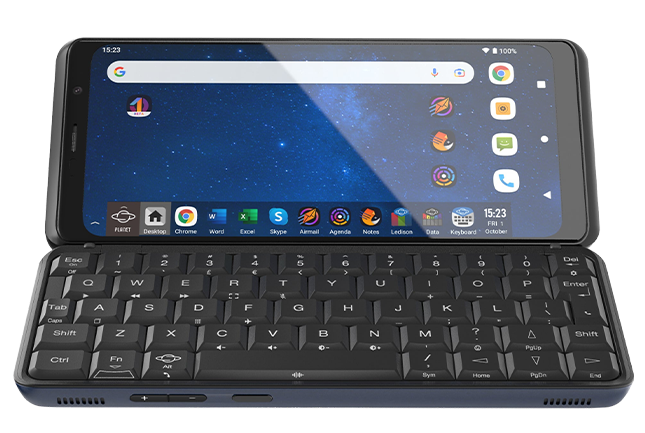

Astro Slide 5G

ASTRO SLIDE is our first 5G transformer smartphone, featuring a slide-out keyboard which transforms the smartphone into a pocket computer.

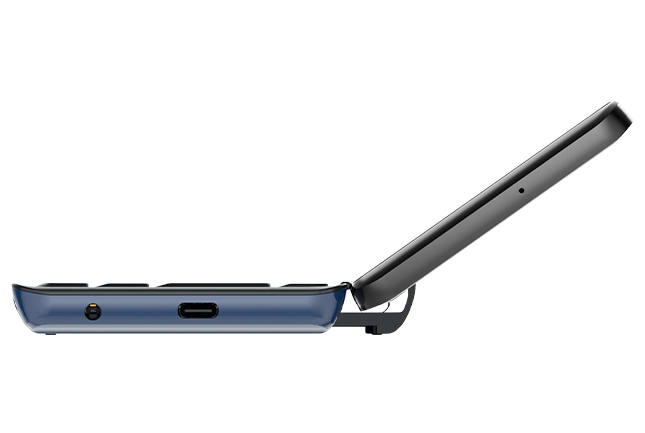

Astro’s amazing design features Planet’s RockUp™ Slider Hinge, a backlit mechanical keyboard with 24 international layouts along our largest and sharpest 6.39″ AMOLED display, and a high quality 48MP Sony sensor camera. Perfect for both portrait and landscape use.

Runs Android 11 as standard for all your favourite apps. Perfect for writing emails and messages, editing documents and spreadsheets, taking notes, as well as being a fantastic 5G smartphone. Includes keyboard layout editor app.

22
24
23
20
21

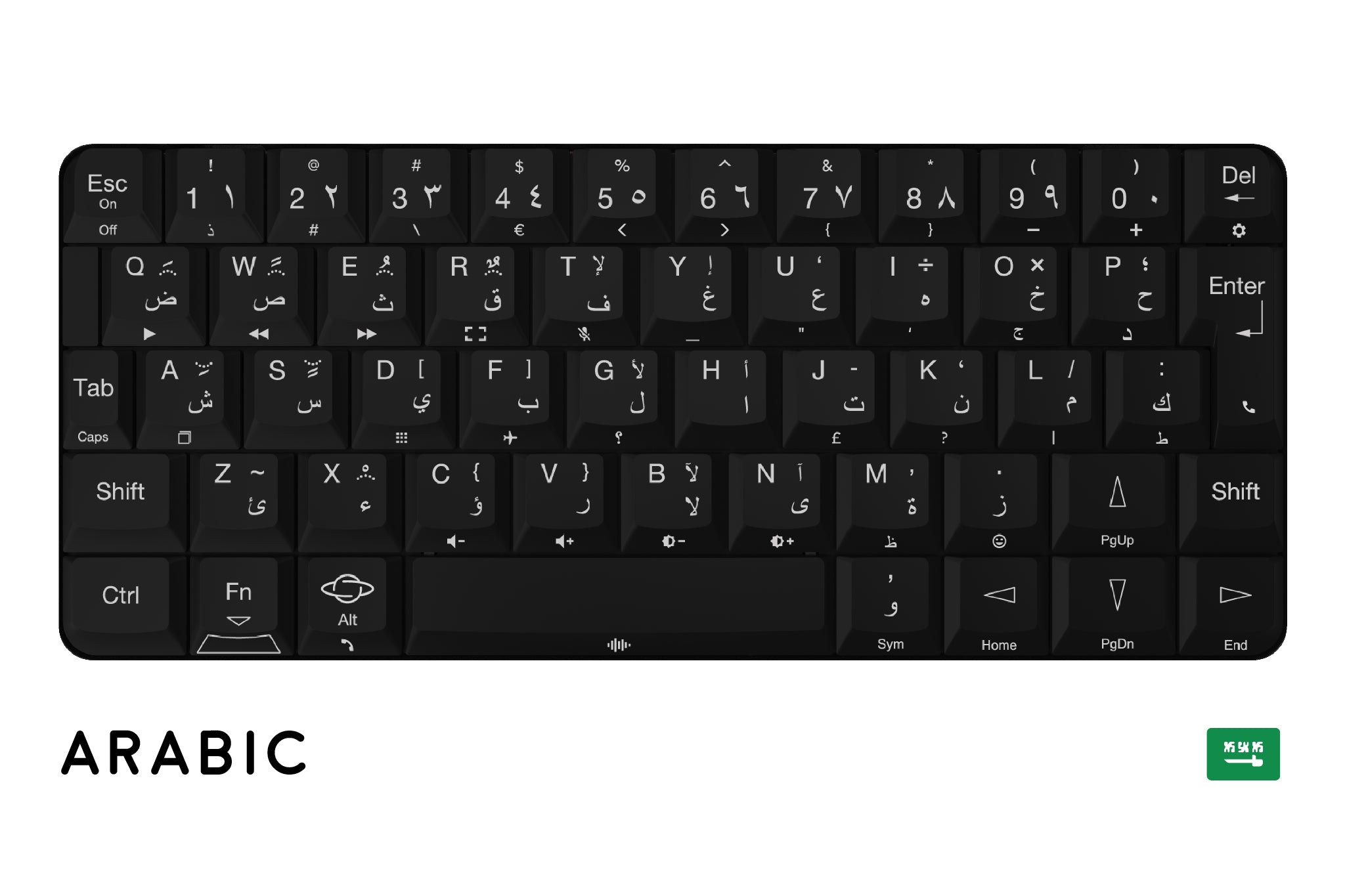

Astro-Keyboards_Arabic_2048x

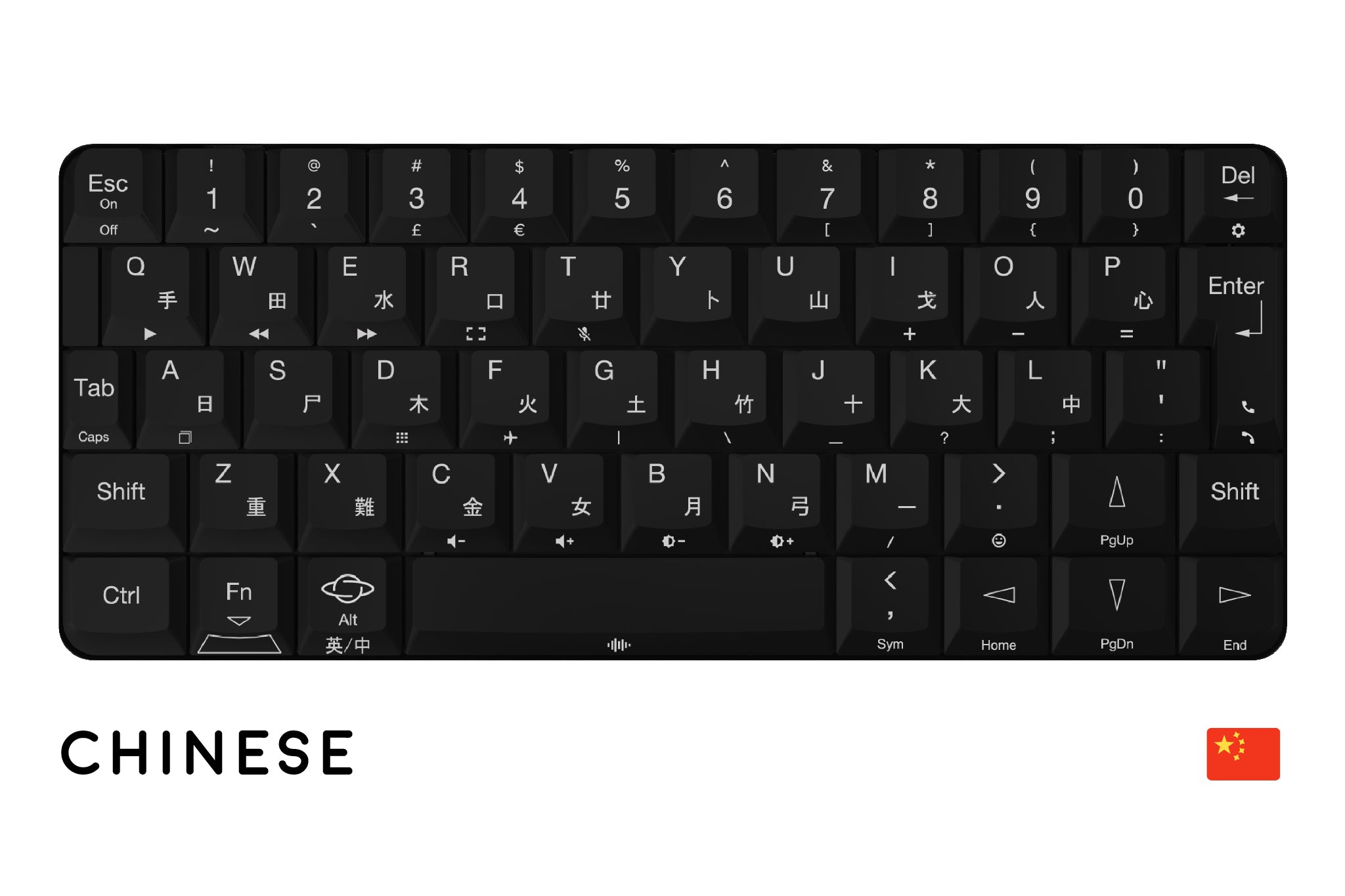

Astro-Keyboards_Chinese_2048x

About ASTRO SLIDE

ASTRO SLIDE is a transformer 5G smartphone featuring:
  • Gorilla Glass 6.39" AMOLED touchscreen - perfect for scrolling through feeds or split screen work!
  • Mechanical backlit keyboard, with 5 brightness levels and EnviroSense adaptive brightness auto adjust.
  • User programmable keyboard keys and Smart-Button.
  • Extended SIM Tray. Holds 2x nano SIM cards + 1x microSD card simultaneously.
  • 128GB Flash + 8GB RAM
  • 48MP SONY sensor camera. Wireless Qi Charging.

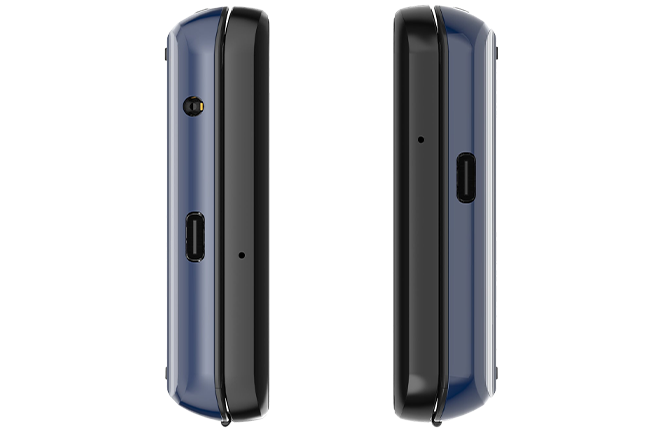

  • 2x USB-C Ports + 3.5mm Audio Jack. Multi-OS Boot.

Full Specification

Network

  • Mobile Modem: Dual 5G + 4G Worldwide
  • Mobile Radio: 5G / 4G / 3G / 2G
  • 5G NR: Band 1, 3, 28, 38, 41, 77, 78, 79
  • GSM: 850/900/1800/1900MHz
  • CDMA: 850/1900 MHz BC0 BC1+ EVDO
  • WCDMA FDD: Band 1, 2, 5, 6, 8
  • VoLTE: VoLTE, ViLTE, VoWiFi compatible
  • LTE FDD: Band 1, 2, 3, 4, 5, 7, 8, 12, 17, 18, 19, 20, 26, 38, 39, 40, 41, 66, 71 / TDD 34, 38, 39, 40, 41
  • WiFi: Wi-Fi 5 (2T2R) 802.11a/b/g/n/ac
  • USA: Tested on T-Mobile, AT&T and Verizon networks

Internal Display

  • Type: 6.39" FHD+ AMOLED (13:6)
  • Resolution: 2340x1080, 403 ppi
  • Multi-Touch: Yes
  • Protection: Scratch-Resistant Gorilla Glass

Platform

  • OS: Currently supporting Android OS.
  • *Planned support for Sailfish, Linux Debian and Linux Kali.
  • Chipset: MediaTek Dimensity 800

Memory

  • RAM: 8 GB
  • Flash: 128 GB
  • Card Slot: microSD

Sound

  • Speakers: High quality stereo speakers
  • Microphone: Ambient noise suppression microphones
  • 3.5mm Audio Jack: Yes

Comms

  • Bluetooth: v5.1
  • GPS: Yes, with AGPS
  • USB: 2x USB Type-C, OTG support
  • NFC: Yes

SIM

  • 2x nano SIM + eSIM

Body

  • Form Factor: External Screen Slider with full mechanical keyboard
  • Dimensions: 172.4 x 76.5 x 18.7mm
  • Weight: 325g

Battery

  • 4,000mAh

Cameras

  • 48MP External (Sony sensor), 13MP Internal

Features

  • Keyboard: Mechanical full keyboard
  • User Programmable: Customise Key functions, choosing between opening an app, system functions, character or emoji input.
  • Backlit: Individually illuminated keys, with brightness adjustment
  • Keyboard Layouts: Arabic, Brazilian, Chinese, Czech, Croatian, Dvorak, Finnish, French, German/Austrian, Greek, Hebrew, Hungarian, Icelandic, Italian, Japanese, Korean, Norwegian/Danish, Polish, Portuguese, Russian, Spanish, Swedish, Swiss, Thai, UK English, US English.
  • Smart Button: User programmable - set to open apps or do system functions.
  • Sensors: Accelerometer, light sensor, gyroscope, magnetic-sensor
  • Sensors: Accelerometer, light sensor, gyroscope, magnetic-sensor

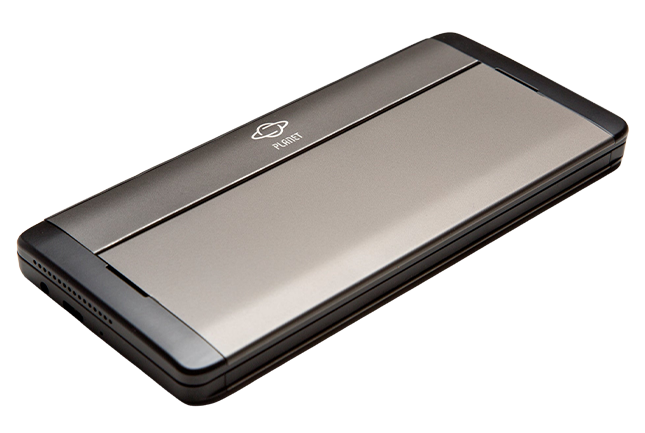

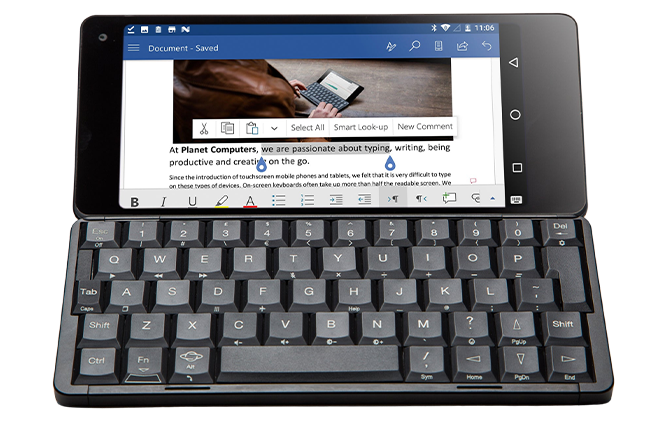

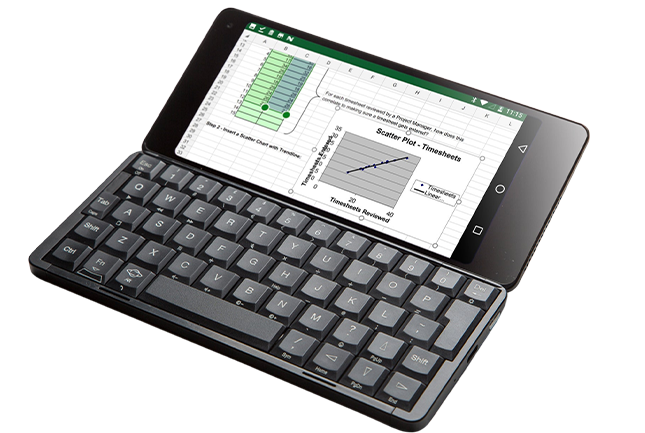

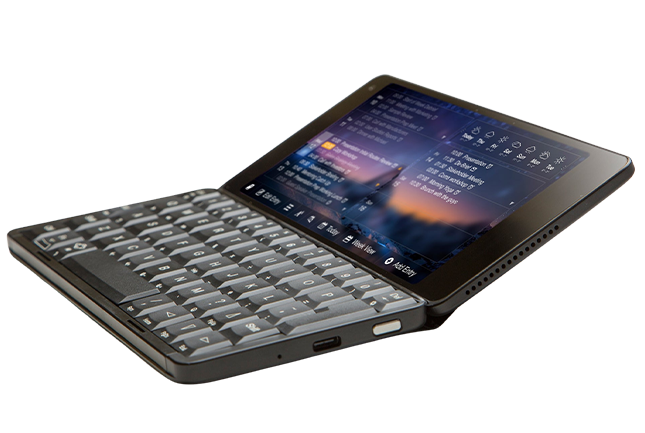

Gemini PDA - 4G+WiFi

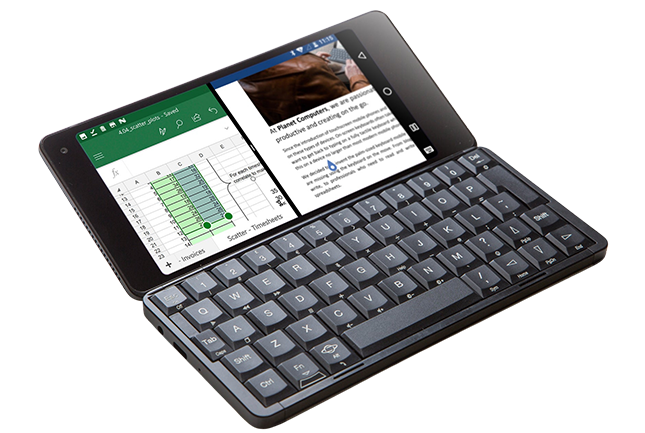

Gemini is an ultra-thin clamshell mobile smartphone device with a fully tactile keyboard.

Gemini features a sleek metal clamshell design that is perfectly balanced for typing when open and beautifully tucks away the palm-sized QWERTY keyboard and screen when closed. It fits into a pocket, roughly the same size as most of today’s mobile phones. When open, the innovative clamshell also acts as a support of the device. The ultra-wide 5.99″ hi-res screen provides ample space for creating on the go. The fully tactile keyboard is recognised as the world’s best yet smallest full-sized keyboard for finger touch typing.
9
10
11
12
13
Image-PDA-2-3-LS-2_2048x
Image-PDA-2-3-LS-1_2048x

About Gemini PDA - 4G+WiFi

Gemini PDA is a clamshell mobile smartphone device with a full tactile keyboard. It features Planet Computer’s cornerstone features:
  • SIM + eSIM
  • Physical mobile keyboard available in 24 languages
  • 4,220mAh battery for all day use
  • Pocketable and lightweight design
  • Clamshell form-factor with kickstand hinge
  • Multi-boot up to four operating systems: Android, Sailfish, Linux (Kali, Debian)
  • Multiple connectivity options for desktop and mobile experiences

Full Specification

Network

  • WiFi802.11a/b/g/n/ac
  • GSM: 850/900/1800/1900MHz
  • CDMA: 850/1900 MHz BC0 BC1+ EVDO
  • WCDMA: 900/2100MHz
  • LTE: 1/2/3/4/5/7/12/17/20/41
  • VoLTE: Compatible

SIM

  • SIM slot + eSIM (ready)

Display

  • Type: 5.99 FHD+ (18:9)
  • Size: 5.99 inch
  • Resolution: 2160x1080, 403 ppi
  • Multi Touch: Yes
  • Protection: Scratch-Resistant Glass

Platform

  • OS: Android OS 7.11 upgradable to 8.1 as standard.
  • User installable Sailfish, Linux Debian and Linux Kali.
  • Dual boot OS capability.
  • Chipset: Mediatek MT6797X Helio X27 (Deca Core)
  • CPU: 2x Cortex A72 @ 2.6 GHz, 4x Cortex A53 @ 2.0 GHz, 4x Cortex A53 @ 1.6 GHz
  • GPU: Quad Core ARM Mali T880 MP4 @ 875MHz

Memory

  • RAM: 4GB
  • Card Slot: microSD
  • Internal: 64GB

Sound

  • Speakers: Stereo Speakers
  • Microphones: Integrated Ambient Microphones
  • 3.5mm Audio Jack: Yes

Comms

  • Bluetooth: v 4.1
  • GPS: Yes, with AGPS
  • USB: 2x USB Type-C, OTG support

Body

  • Form Factor: Wide Clam Shell
  • Dimensions(mm): 171.4w x 79.25d x 15.1h
  • Weight: 308g
  • Battery: 4,220mAh

Camera

  • 5MP Front Camera (External 5MP camera additional accessory module also available)

Features

  • Keyboard: Mechanical full keyboard
  • Keyboard Layouts: Arabic, Brazilian, Chinese, Czech, Croatian, Dvorak, Finnish, French, German/Austrian, Greek, Hebrew, Hungarian, Icelandic, Italian, Japanese, Korean, Norwegian/Danish, Polish, Portuguese, Russian, Spanish, Swedish, Swiss, Thai, UK English, US English.
  • Voice Input: Dedicated voice assistance button
  • Sensors: Accelerometer, light sensor, gyroscope, magnetic-sensor

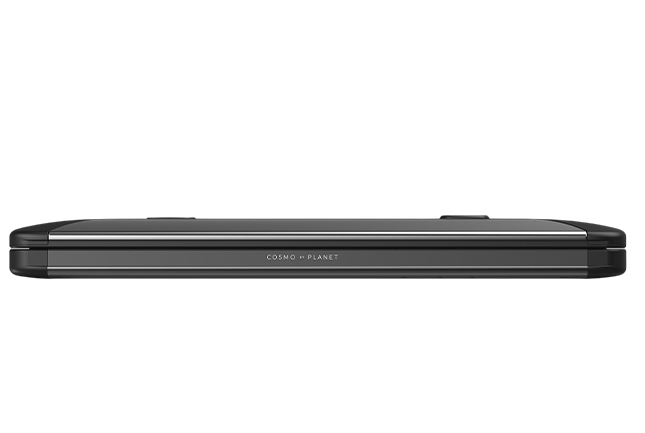

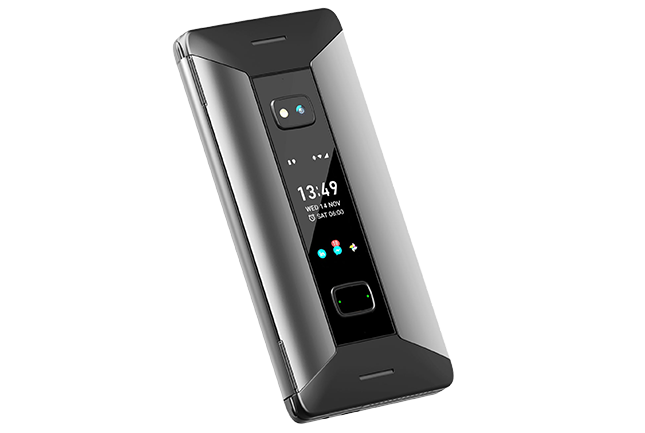

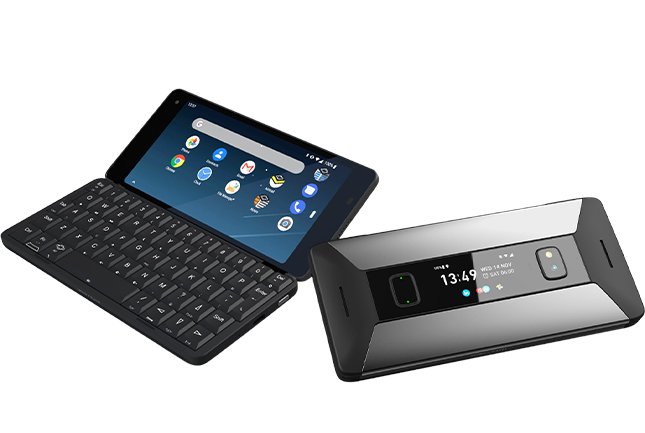

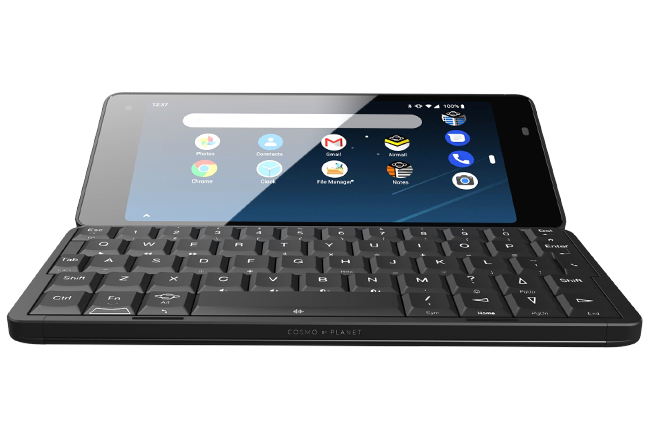

Cosmo Communicator

Cosmo Communicator is the ultimate mobile device that fits in your pocket. It’s a great little computer with an excellent keyboard, a world-wide dual-SIM mobile phone and a fantastic camera – all in one!
Great for emails, messaging, editing documents, making calls and taking snaps. Running Android 9 OS as standard.
14
15
16
17
18

About COSMO Communicator

Cosmo Communicator is a dual screen, dual 4G, clamshell mobile smartphone device with a fully tactile keyboard, featuring:

  • Dual colour touchscreen displays: external 2" touchscreen when device is closed and large 6" touchscreen when device is open - ample space to create on the move.
  • Physical backlit keyboard, individually illuminated keys with 5 brightness levels.
  • 24MP external camera for open device photos or closed device selfies and videos.
  • 128GB Flash + 6GB RAM

Full Specification

Network

  • WiFi: 802.11a/b/g/n/ac
  • GSM: 850/900/1800/1900MHz
  • WCDMA FDD: Bands: 1, 2, 5, 8
  • WCDMA TDD: 900/2100MHz
  • LTE: Bands A, F
  • VoLTE: Compatible
  • LTE FDD (Japan): 1, 2, 3, 4, 5, 7, 8, 11, 18, 19, 26, 28, 41, 71
  • LTE FDD (EUSA): 1, 2, 3, 4, 5, 7, 8, 12, 17, 19, 20, 25, 41, 66, 71
  • LTE FDD (VE): 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 19, 20, 25, 41, 66 LTE TDD: Band 41
  • CA: Intra-band contiguous CA_1,CA_3CDMA CDMA: 2000

Internal Display

  • Type: 5.99" FHD+ (18:9)
  • Resolution: 2160x1080, 403 ppi
  • Multi-Touch: Yes
  • Protection: Scratch-Resistant Glass

External Display

  • Type: 1.91" AMOLED
  • Touchscreen: Yes

Platform

  • OS: Currently supporting Android OS.
  • *Planned support for Sailfish, Linux Debian and Linux Kali.
  • Chipset: MediaTek Helio P70

Memory

  • RAM: 6GB
  • Flash: 128GB
  • Card Slot: microSD

Sound

  • Speakers: High quality stereo speakers
  • Microphone: Ambient noise suppression microphones
  • 3.5mm Audio Jack: Yes

Comms

  • Bluetooth: v 5.0
  • GPS: Yes, with AGPS
  • USB: 2x USB Type-C, OTG support
  • NFC: Yes

SIM

  • 2x nano SIM + eSIM

Body

  • Form Factor: Wide Clam Shell
  • Dimensions: 17.1 (W) x 7.93 (H) x 1.73cm (D) Weight: 326g

Battery

  • 4,220mAh

Cameras

  • 24 MP External, 5 MP Internal

Features

  • Keyboard: Mechanical full keyboard
  • Backlit: Individually illuminated keys, with brightness adjustment
  • Keyboard Layouts: Arabic, Brazilian, Chinese, Czech, Croatian, Dvorak, Finnish, French, German/Austrian, Greek, Hebrew, Hungarian, Icelandic, Italian, Japanese, Korean, Norwegian/Danish, Polish, Portuguese, Russian, Spanish, Swedish, Swiss, Thai, UK English, US English.
  • Voice Input: Dedicated voice assistance button
  • Sensors: Accelerometer, light sensor, gyroscope, magnetic-sensor
  • Fingerprint Sensor: Yes, sub-glass sensor

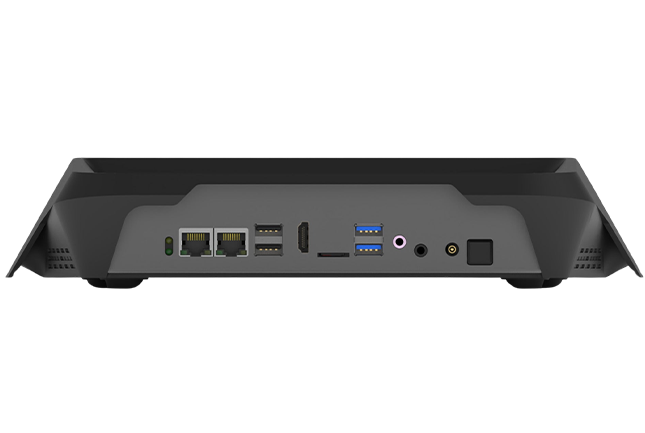

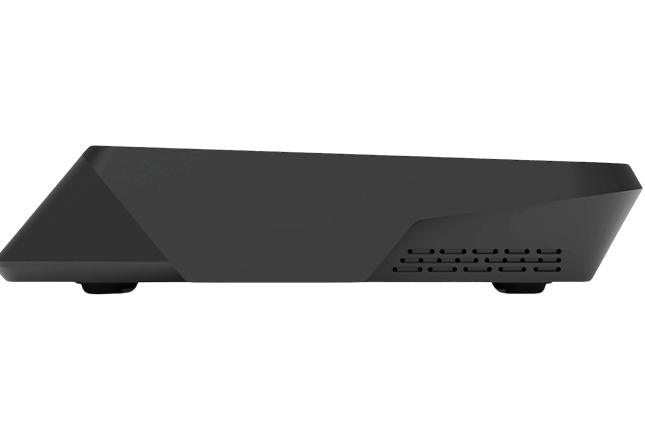

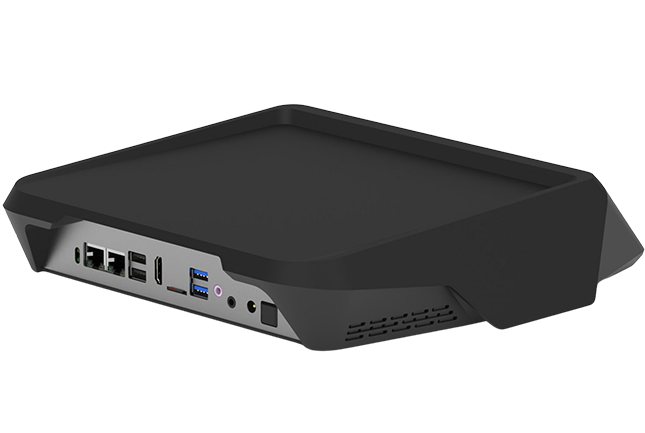

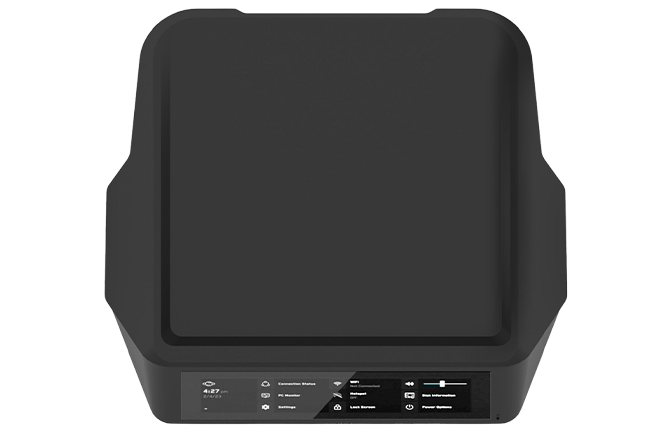

PlanetPC XR1 Mini Desktop

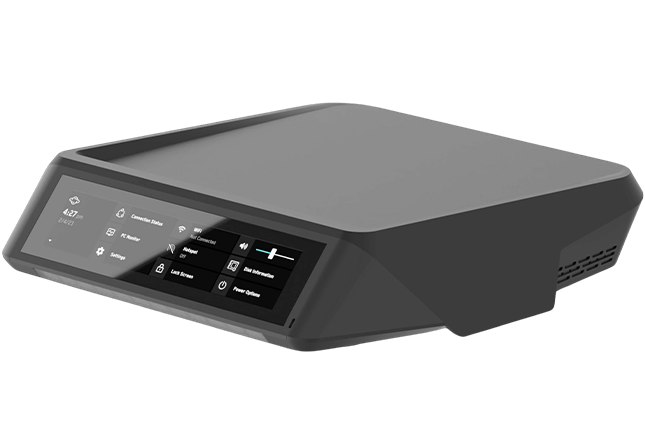

The XR1 Mini Desktop is the value system offering in Planet’s XR series of Ubuntu Linux mini desktops.

The new-look XR features a unique integrated colour touchscreen, giving access to soft keys for frequent tasks, a system monitor and controls for WiFi, Bluetooth, VPN, Network disk, audio and other system functions.

The XR1 features a 4-core superfast ARM processor coupled with a G52 2EE GPU and a 0.8 Tops Neural Processing Unit. The XR series has 4 Gigabytes of memory as well as 32 Gigabytes of Flash storage. Built-in storage options range from 512GB up to 14TB of storage .

Powered by ARM multicore processor technology, the zero-configuration XR Series, for the first time ever, allows anyone – from professionals, developers to gamers and content creators – to become a Linux user straight out of the box.

45
35
44
46
47

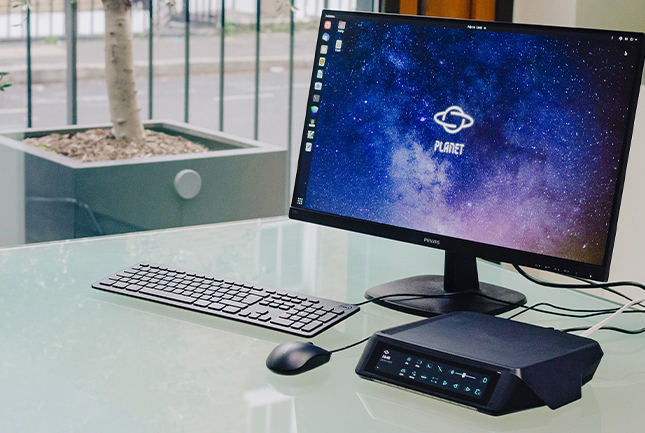

PlanetPC-XR-Desk-1_12c4eff4-ae4d-495c-a7f9-e8434fec946d_2048x
PlanetPC-XR-User-1_033fec01-16cc-4004-859b-2176c04cf2c3_2048x

XR MINI DESKTOP PC

The XR Series includes many features which improve the Linux and PC user experience.
  • Zero Configuration
  • Touch Screen Interface
  • Out of the Box Linux
  • Expandable Storage
  • Dual Gig Ethernet + WiFi 6
  • Built-In Internet Relay Support 8K Video Encoding and Decoding
  • Dual Video (4K and 8K Output)

Full Specification

CPU

  • ARM Rockchip 3568
  • 4 Cores

Core Specification

  • 4-core 64-bit
  • Cortex-A55
  • 22nm lithography process

Clock Speed

  • up to 2.0GHz

GPU

  • ARM G52 2EE

NPU

  • RKNN NPU, 0.8Tops@ INT8

RAM

  • 4GB LPDDR4

Internal Storage

  • 32GB

Storage Options

  • 512GB / 1TB / 2TB M.2 NVMe

Other Peripherals

  • 14TB SATA HDD /
  • 2TB SATA SSD

Video Out

  • 1x HDMI Port 4K

Video Decoding

  • 4K 60fps H.265/H.264/VP9

Video Encoding

  • 1080P 60fps H.265/H.264 8M ISP, HDR

USB Ports

  • 2x USB 3.0 + 3x USB 2.0

USB-C Ports

  • 1x USB 2.0

XR SERIES FEATURES

Integrated Colour Touch Screen

  • 1424 x 280

Operating System

  • Ubuntu 20.04

Multi-LED Indicator Strip

  • RGB Colour

Ethernet Ports

  • 2x 1GB

WiFi 6

  • 802.11 AX

Bluetooth

  • 5.0

Stereo Speakers + Microphone

  • Earphone Output
  • Micro SD + SIM Slot

Device Dimensions

  • 29 x 26 x 6cm / 11.4 x 10.2 x 2.36 Inch

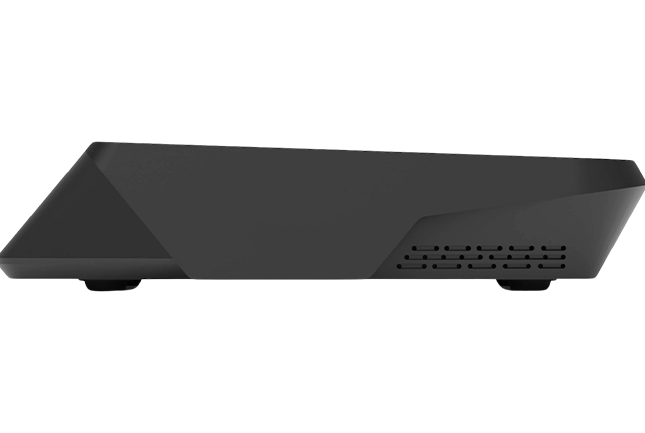

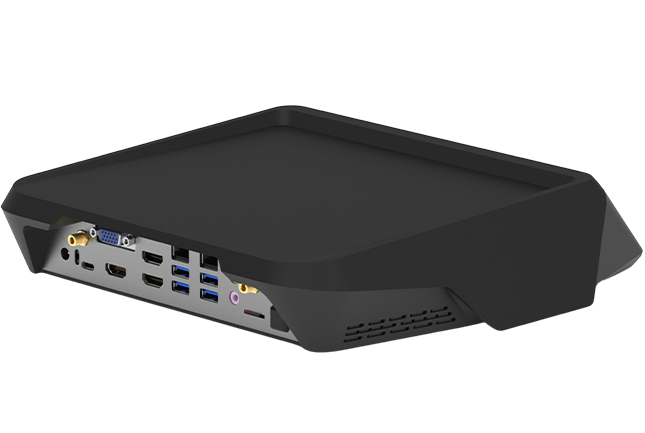

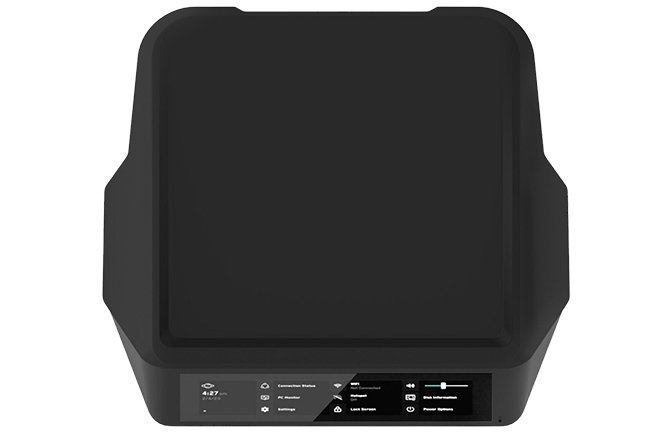

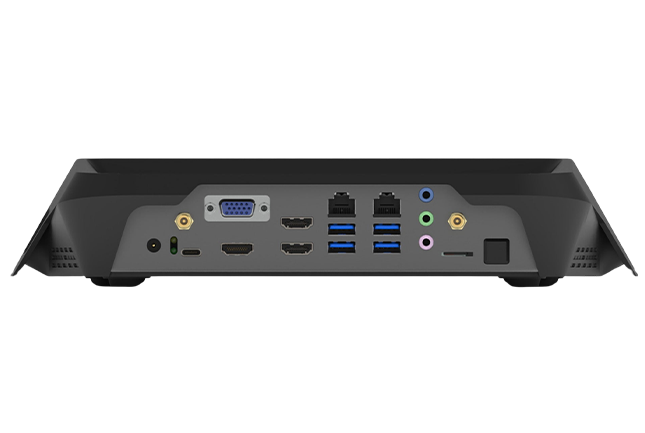

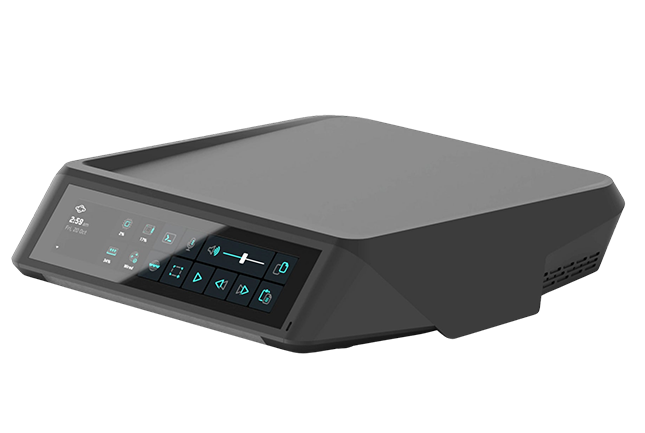

PlanetPC XR2 Mini Desktop

The XR1 Mini Desktop is the value system offering in Planet’s XR series of Ubuntu Linux mini desktops.

The new-look XR features a unique integrated colour touchscreen, giving access to soft keys for frequent tasks, a system monitor and controls for WiFi, Bluetooth, VPN, Network disk, audio and other system functions.

The XR1 features a 4-core superfast ARM processor coupled with a G52 2EE GPU and a 0.8 Tops Neural Processing Unit. The XR series has 4 Gigabytes of memory as well as 32 Gigabytes of Flash storage. Built-in storage options range from 512GB up to 14TB of storage .

Powered by ARM multicore processor technology, the zero-configuration XR Series, for the first time ever, allows anyone – from professionals, developers to gamers and content creators – to become a Linux user straight out of the box.

49
42
43
48
50

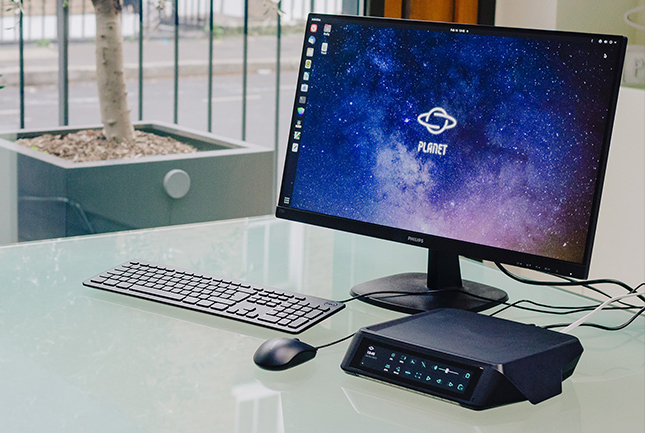

PlanetPC-XR-Desk-1_2048x
PlanetPC-XR-User-1_033fec01-16cc-4004-859b-2176c04cf2c3_2048x
Shopify-PlanetPC-3to1-Rectangle-XR2-PH-01_2048x

XR mini Desktop PC

The XR Series includes many features which improve the Linux and PC user experience.

  • Zero Configuration
  • Touch Screen Interface
  • Out of the Box Linux
  • Expandable Storage
  • Dual Gig Ethernet + WiFi 6
  • Built-In Internet Relay Support 8K Video Encoding and Decoding
  • Dual Video (4K and 8K Output)

Full Specification

CPU

  • ARM Rockchip 3588
  • 8 Cores

Core Specification

  • 8-core 64-bit
  • 4xCortex-A76 + 4×Cortex-A55
  • 8nm lithography process

Clock Speed

  • up to 2.4GHz

GPU

  • ARM Mali-G610 MP4 quad-core

NPU

  • NPU computing power up to 6 TOPS

RAM

  • 4GB LPDDR4 / 8GB LPDDR4x / 16GB LPDDR5

Internal Storage

  • 32GB / 64GB / 128GB

Storage Options

  • 256GB / 512GB / 1TB M.2

Other Peripherals

  • 2TB NVMe SSD via USB

Video IN

  • 1x HDMI Port 4K

Video Out

  • 2x HDMI Ports (4K and 8K) / VGA

Video Decoding

  • 8K@60fps H. 265/VP9/AVS2,
  • 8K@30fps H.264 AVC/MVC,
  • 4K@60fpS AV1,
  • 1080P@60fps MPEG-2/-1/VC-1/VP8,
  • Up to 32-channel 1080P@30fps

Video Encoding

  • 8K@30fps, H.265 / H.264
  • Up to 16-channel 1080P@30fps

USB Ports

  • 4x USB 3.0

USB-C Ports

  • 1x USB 3.0

XR SERIES FEATURES

Integrated Colour Touch Screen

  • 1424 x 280

Operating System

  • Ubuntu 20.04

Multi-LED Indicator Strip

  • RGB Colour

Ethernet Ports

  • 2x 1GB

WiFi 6

  • 802.11 AX

Bluetooth

  • 5.0

Stereo Speakers + Microphone

  • Earphone Output
  • Micro SD + SIM Slot

Device Dimensions

  • 29 x 26 x 6cm / 11.4 x 10.2 x 2.36 Inch
