Processor: |
SL8541E+SA206 Quad-core Cortex-A53@1.4GHz Mali820@680MHz |
Memory: |
Flash ROM: 32GB RAM: 2GB |
Satellite positioning: |
Support GPS&BD dual-mode positioning |
OS: |
Android 8.1 |
2-way AHD camera: |
GC2053, wide-angle 140° supports 2-way camera front/rear (AHD1080P) |

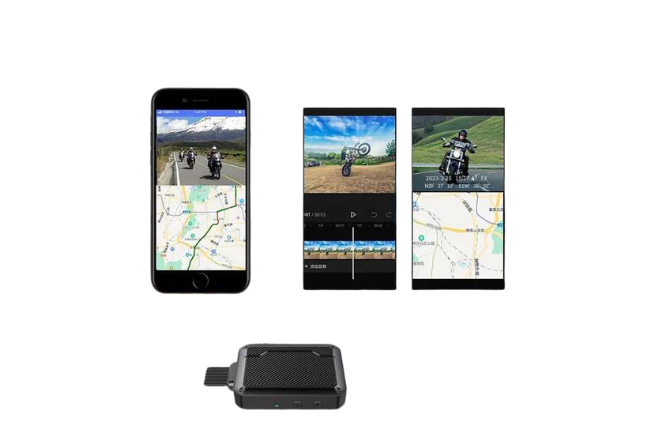

Remote monitoring: |
Support mobile APP and computer remote real-time monitoring (personal car assistant, fleet CMSV6) |
Communication frequency band: |
GSM: B5/B3; WCDMA: B1/B5; LTE: B1/B3/B5/B8/B38/B39/B40/B41 |
WiFi: |
802.11ac/b/g/n 2.4G&5G; support WiFi hotspot |
SOS: |
Support one-key alarm |
Video format: |
TS |
Storage compression method: |
H.264 |
Video resolution: |
Front camera 1920*1080 25 frames/S, rear camera 1920*1080 25 frames/S |
Collision lock: |
6-axis G-sensor sensor, support loop recording |
Parking monitoring: |
6-axis G-sensor sensor, supports parking monitoring |
USB: |
Micro USB |
Storage TF card: |
Maximum support 256GB |
Microphone: |
Built-in high-sensitivity microphone |
Buttons: |
Reset button and power button |
Serial communication: |
Support one UART |
Reset function: |
Support |
Power supply: |
Take power from the fuse box, support 9-16V voltage |
Working environment: |
-20°C~+70°C |
Storage temperature: |
-30°C~+80°C |
The main function: |

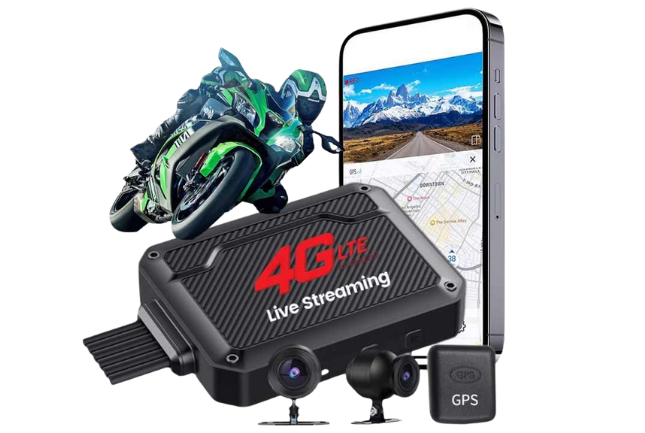

This product is a 4G three-record driving recorder, equipped with high-definition car DV camera,
driving assistance System, GPS driving track, positioning, WIFI hotspot, audio-visual entertainment,
4G communication and external TF card. The multifunctional high-tech product with storage in one,
meets the following technical requirements:
1. JT/T1078 "Video Communication Protocol for Road Transport Vehicle Satellite Positioning System"
2. JT/T808 "Baidou Compatible Vehicle Terminal Communication Protocol Technology for Road Transport Vehicle Satellite Positioning System" technical specification
3. JT/T794-2019 "Technical Requirements for Vehicle Terminals of Satellite Positioning System for Road Transport Vehicles"
4. JT/T1076-2016 "Technical requirements for on-board video terminals of satellite positioning systems for road transport vehicles" |
